Electric Stick
-
High Voltage Triangle Hot Stick
-
Pultrusion Insulation
-

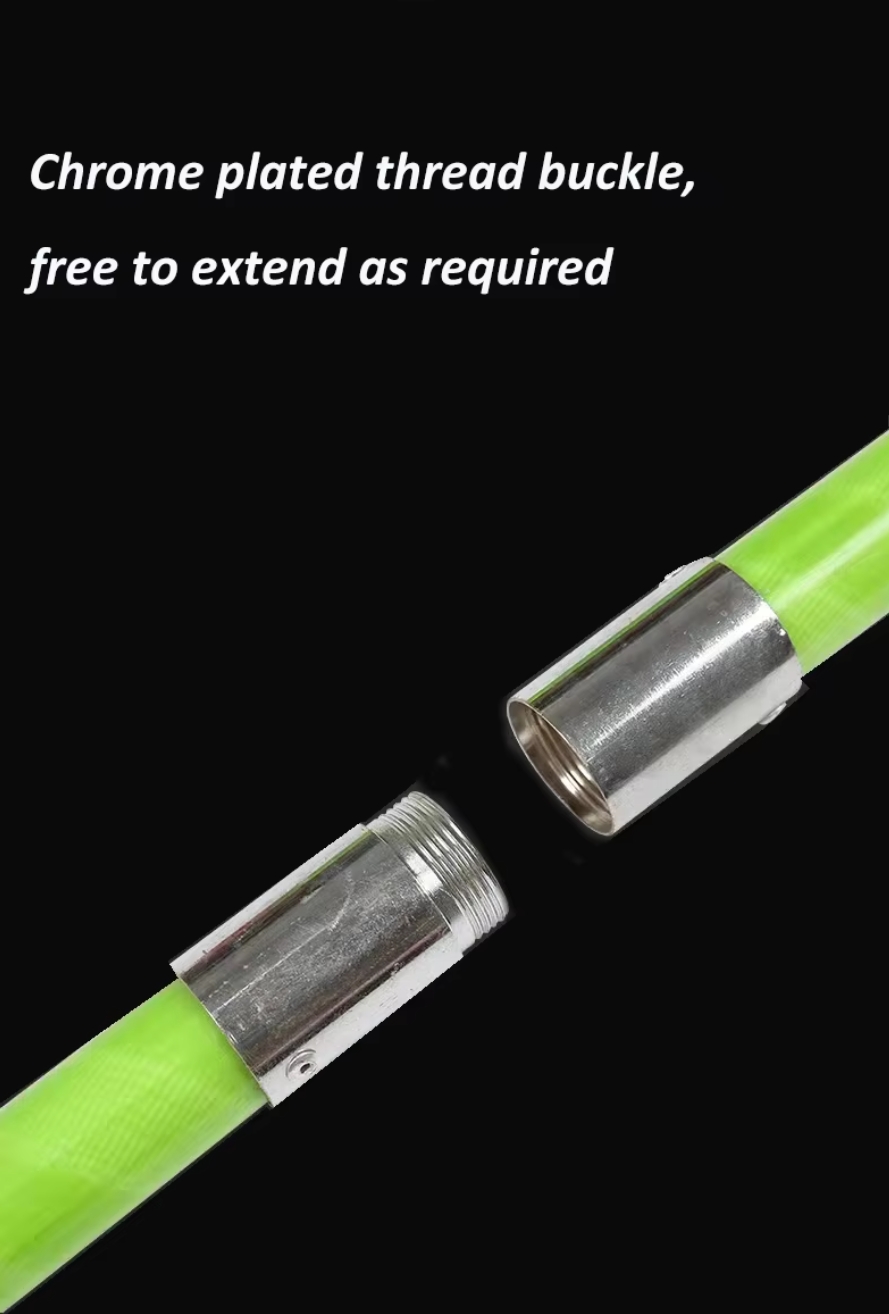

Iron buckle type
Product Description
Main features
There are a variety of Fiberglass Reinforced Plastic
(FRP) constructions used for hot sticks. Included are
foam filled tubular sticks used for all products requiring
solid construction.Our hot stick production is 100% electrically proof tested.
requirements.
Character:

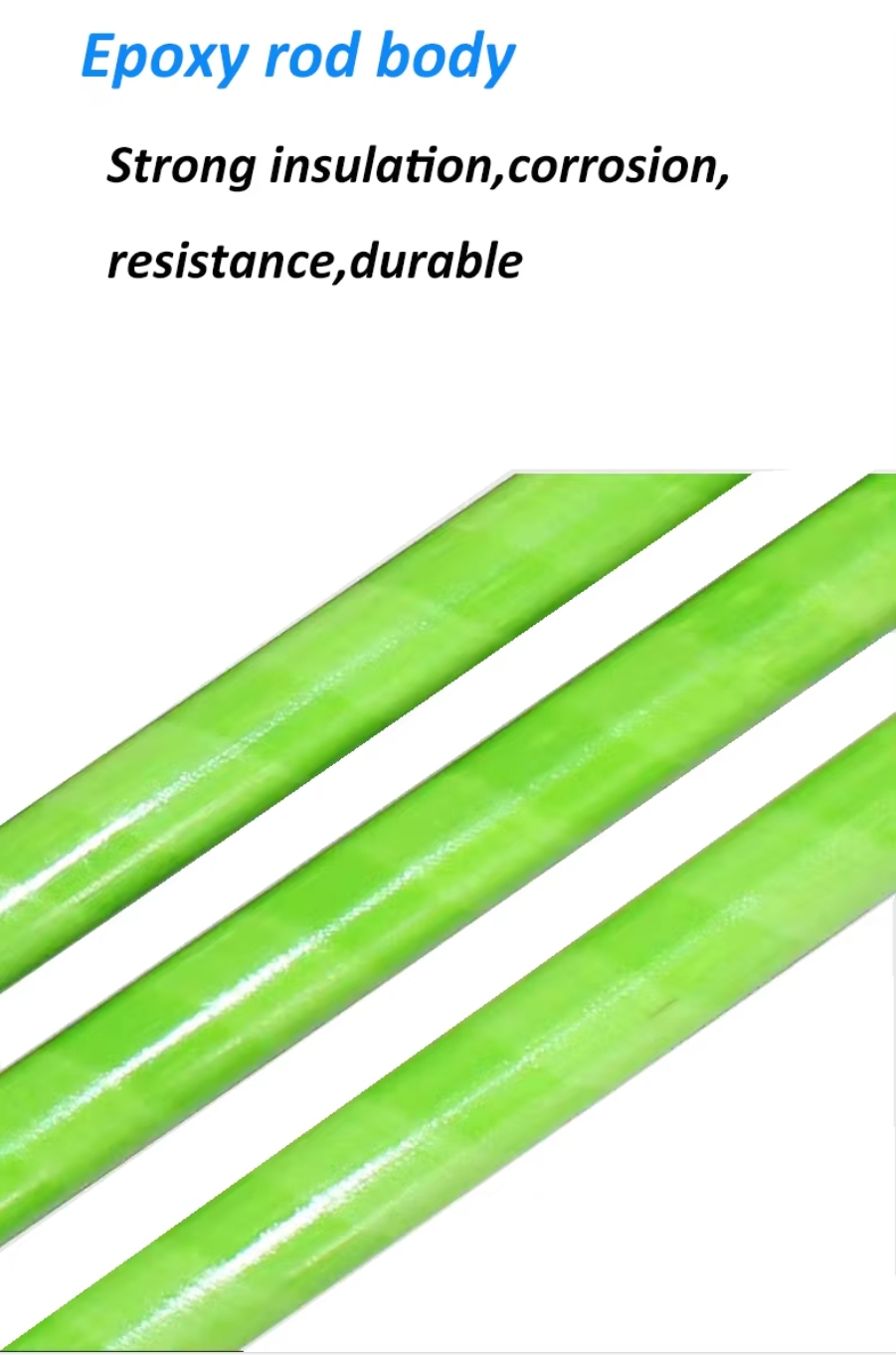

1.Material:Light Epoxy Resin
2.Light weight, only 2.75kg/m
3.High voltage
4. high strength

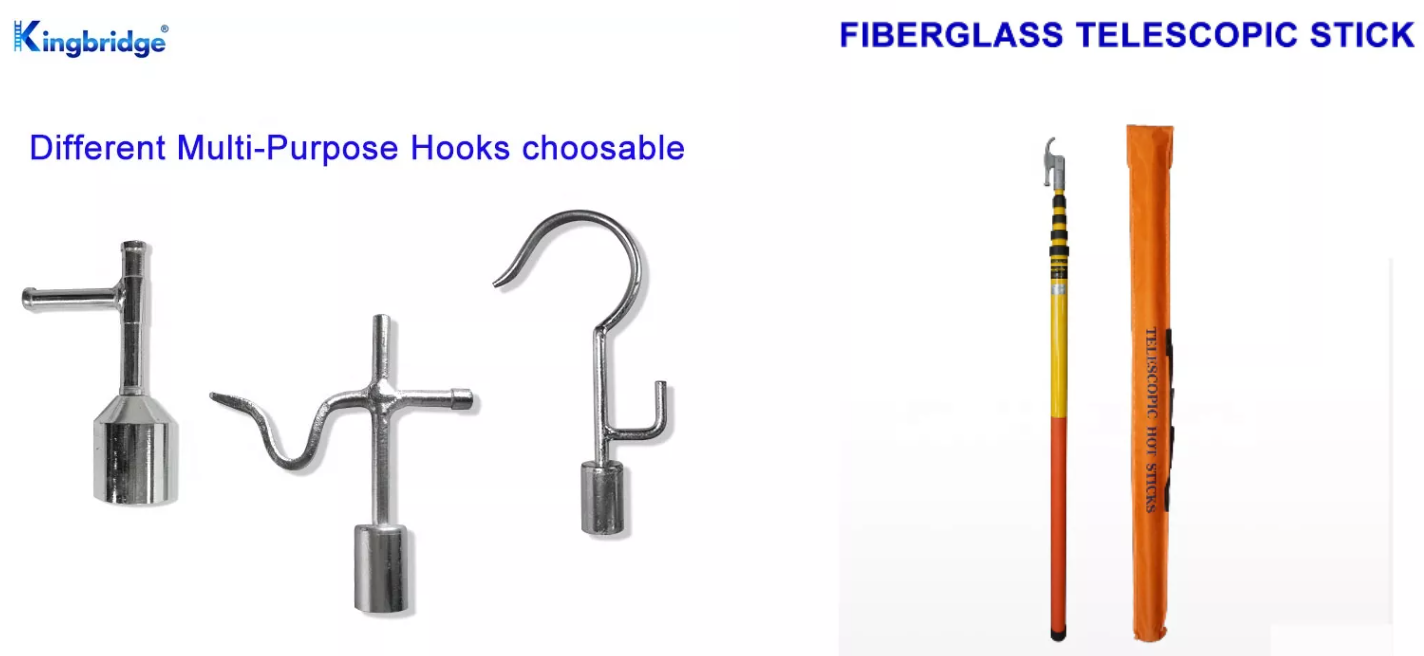

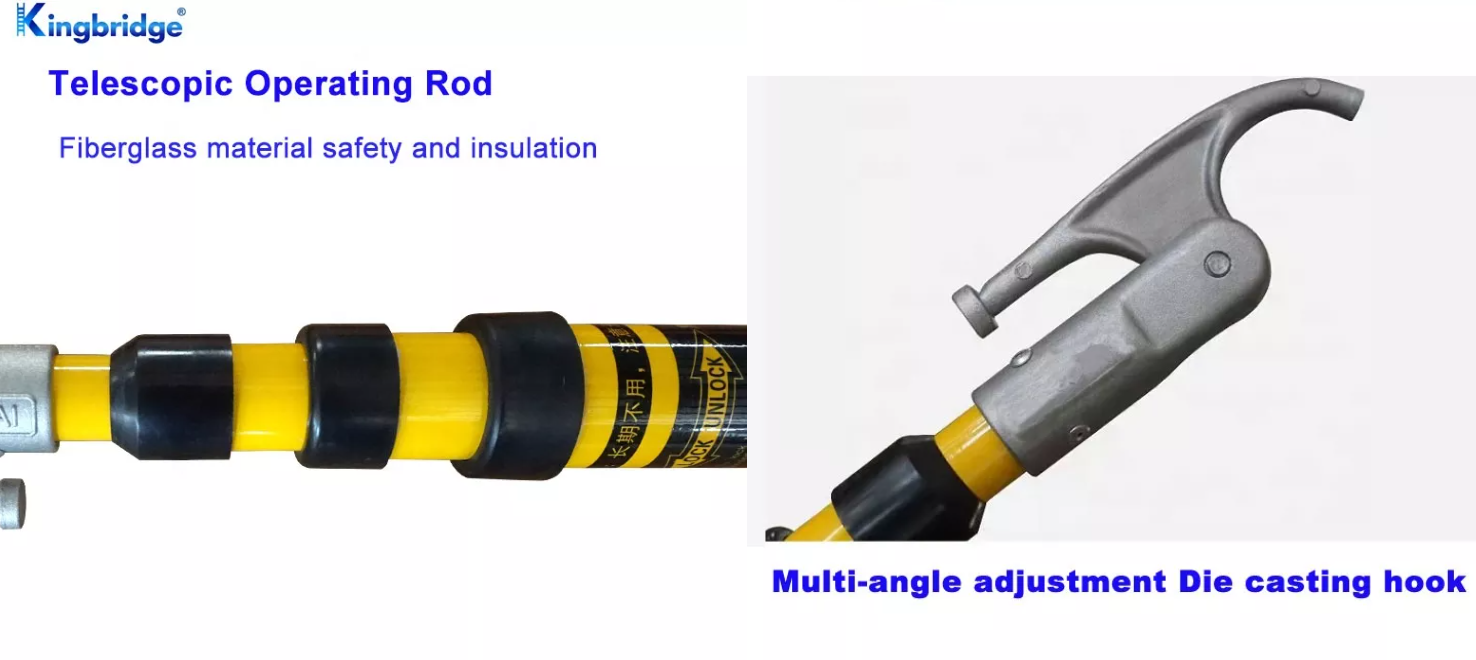

Product name | Fiberglass Telescopic Stick |
Brand name | Kingbridge |
Model number | KBG-FS-4S-6M |
Color | Orange and Yellow |
Material | FRP |
Withstand voltage | Specification |
10 kv | 3 meter with 3 sections / 4 meter with 3 sections |
35KV | 4.5 meter with 3 sections |
110KV | 5 meter with 3 sections |
220KV | 6 meter with 4 sections |
500KV | 7.5 meter with 4 sections |
Detailed Images
Product Description
Main features
There are a variety of Fiberglass Reinforced Plastic
(FRP) constructions used for hot sticks. Included are
foam filled tubular sticks used for all products requiring
solid construction.Our stick production is 100% electrically proof tested.
requirements.
Character:
1.length:Extension item,each size can be book.
2.Stress levels:10KV,35KV,66KV,110KV,220KV,500KV
3.High voltage
4. high strength

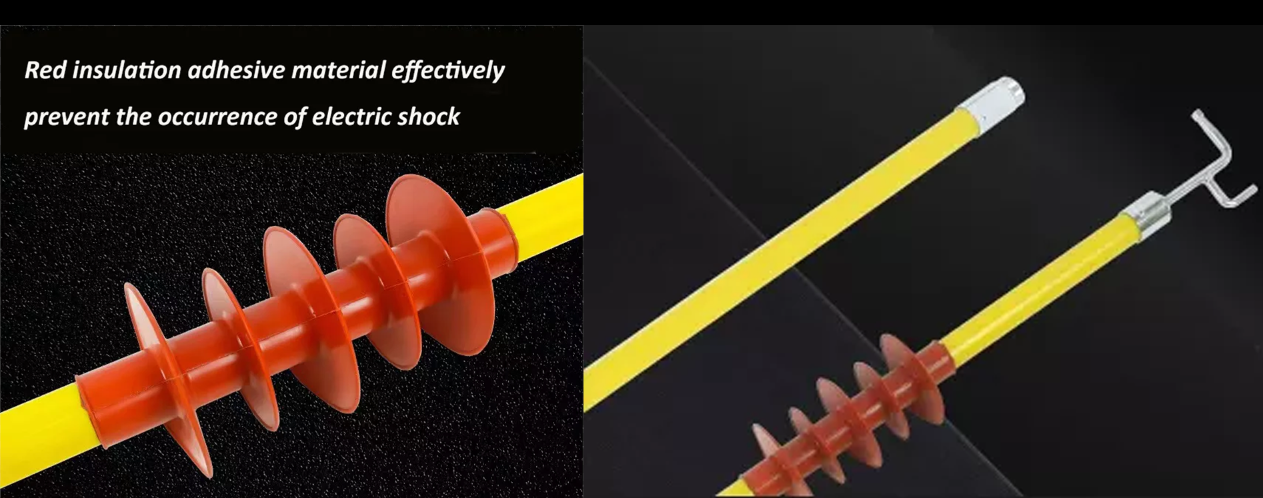

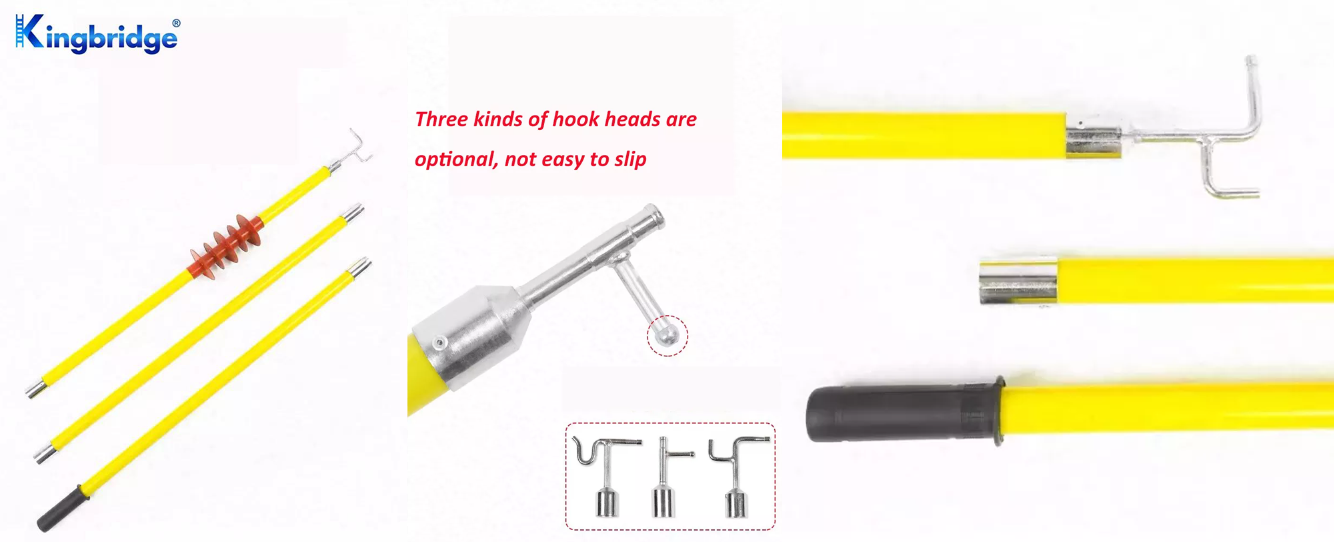

Product name | High Pressure Brake Lever Reg Bar and Telescopic Hot Stick |
Brand name | Kingbridge |
Model number | KBG-Extension |
Color | Yello and Red |
Material | FRP |
Detailed Images
Product Description
Main features
There are a variety of Fiberglass Reinforced Plastic
(FRP) constructions used for hot sticks. Included are
foam filled tubular sticks used for all products requiring
solid construction.Our stick production is 100% electrically proof tested.
requirements.
Character:
1.length:3-8M
2.Stress levels:10KV,35KV,66KV,110KV,220KV,500KV
3.High voltage
4. high strength

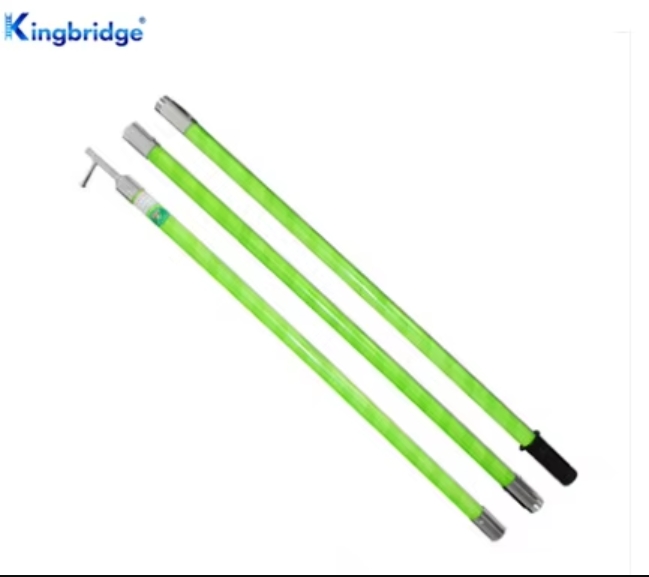

Product name | Iron buckle type telescopic operating lever |
Brand name | Kingbridge |
Model number | KBG-A-012 |
Color | Green and Yellow |
Material | FRP |
Specification | Maximum allowable voltage | color |
3 meter with 3 sections | 10KV | GR/YE |
4 meter with 3 sections | 35KV | GR/YE |
5 meter with 3 sections | 110KV | GR/YE |
6 meter with 4 sections | 220KV | GR/YE |
8 meter with 4 sections | 500KV | GR/YE |
Detailed Images
